Medium (D400)
Outside diameter – 790 mm.

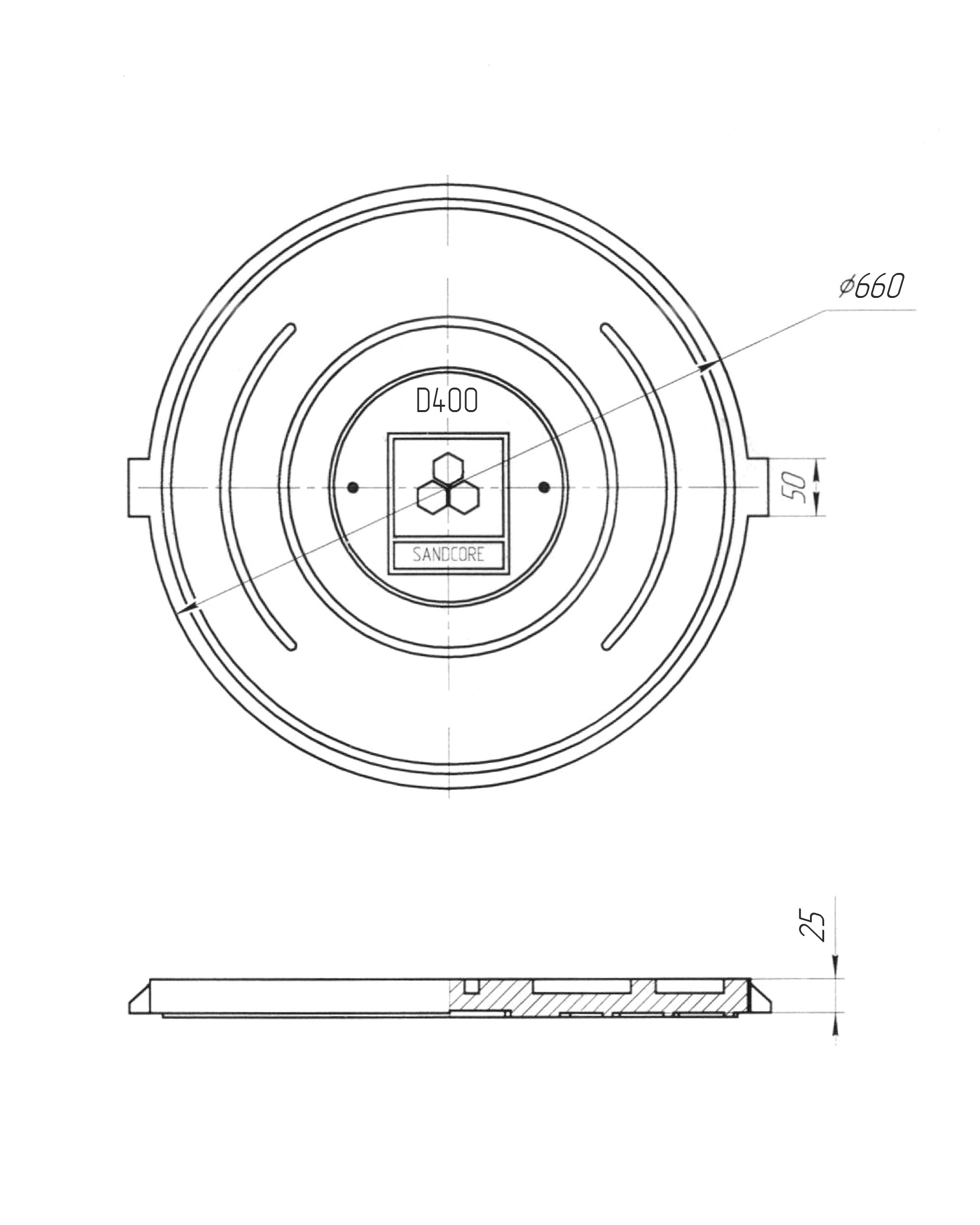

Cover diameter – 660 mm.
Internal diameter – 600 mm.
Height – 95 mm.
Weight hatch complete (D400) – 60 kg.
Maximum load – 40 ton (400 kN)
Cover diameter – 660 mm.
Internal diameter – 600 mm.
Height – 95 mm.
Weight hatch complete (D400) – 60 kg.
Maximum load – 40 ton (400 kN)

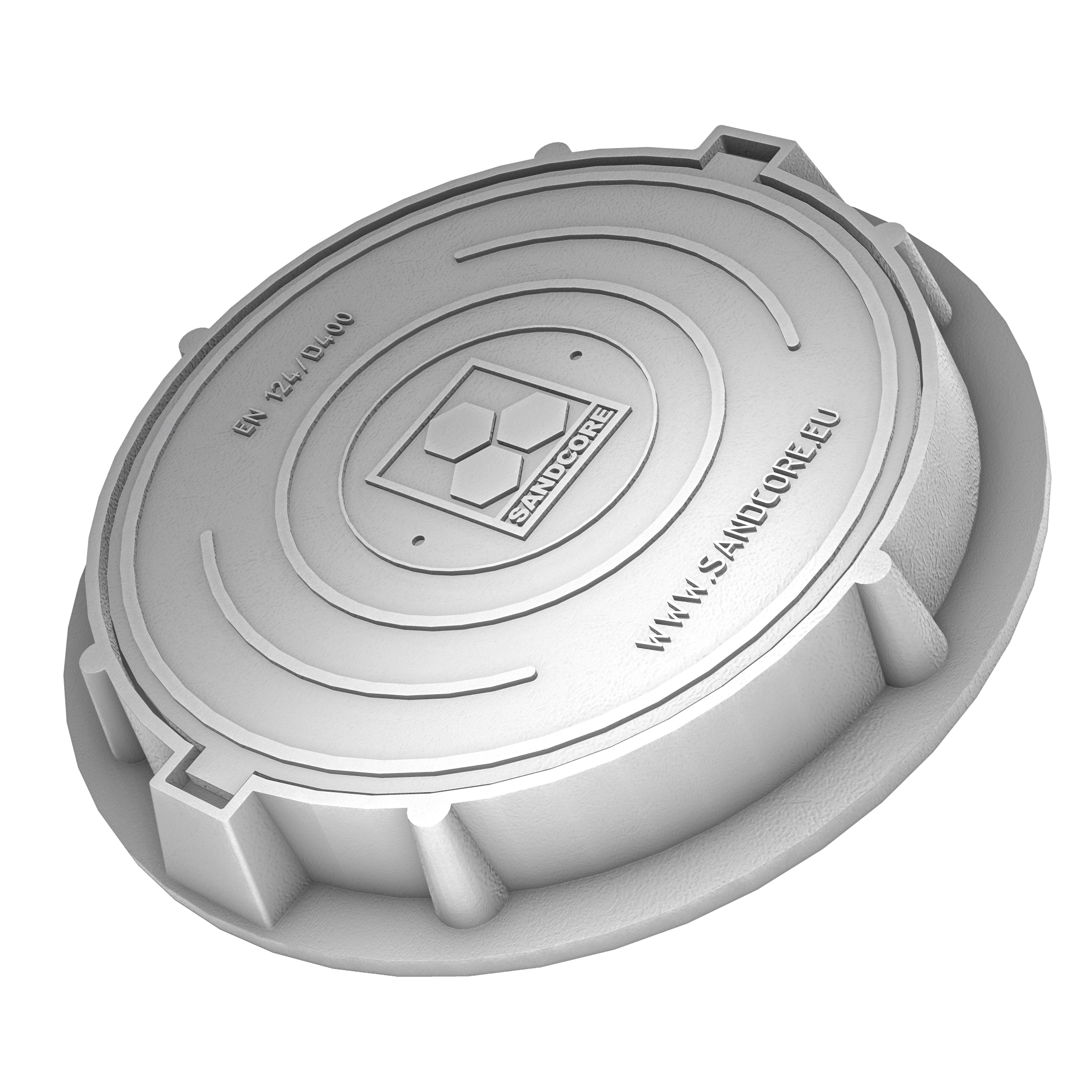

Manhole covers of this load capacity are specifically designed for installation in green areas, pedestrian zones, and parking areas for passenger vehicles, where heavy-duty vehicles are restricted from entry. The height of the manhole cover frame allows for easy installation in areas with laid-out sidewalk tiles. Additionally, the medium-sized manhole cover can be equipped with an intermediate cover featuring an opening for a gas analyzer. Please note that a locking device is not included with this type of manhole cover.
